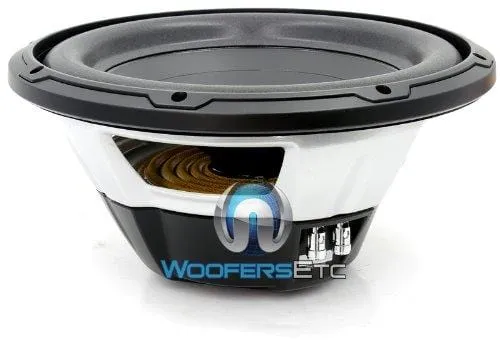

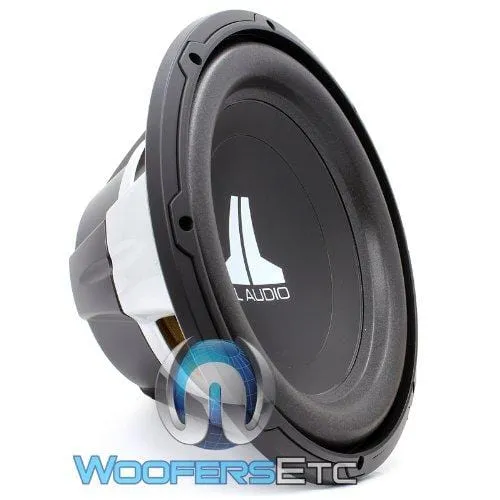

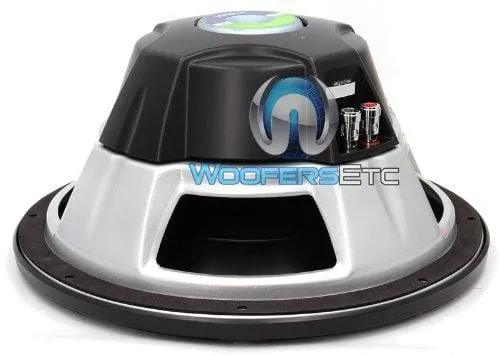

Name: 12W0V3-4 - JL Audio 12" Single 4-Ohm W0V3 Series Subwoofer
SKU: 2287697

Product Details ＋

Brand: JL AUDIO

Color: BLACK

Features:

12W0V3-4 - JL Audio 12" Single 4-Ohm W0V3 Series Subwoofer
Mineral-filled, polypropylene cone woofer for excellent durability
Large roll surround for generous amounts of excursion
Elevated frame cooling brings air directly to the voice coil
Designed for compact sealed enclosures or medium-sized ported enclosures

Publisher: JL Audio

Details: JL Audio 12W0V3-4 12" 4 Ohm Subwoofer
Impedance: 4 ohms
Patented Elevated Frame Cooling
Most Real Excursion In its class
Highly Linea, DMA Optimized Motor System
Designed for use in compact sealed or medium-size ported enclosures
Lead-wire system woven into spider
Metallic silver frame finish
Mineral-Filled Polypropylene Cone
Peak Power Handling: 600 Watts
RMS Power Handling: 300 Watts
Nitrile Butadiene Rubber Material
Thermal Power Handling Output: 300 Watt
Free Air Resonance (Fs): 28.43 Hz
DC Resistance (Re): 4.280 ohm
Sensitivity: 85.64 dB
Electrical "Q" (Qes): 0.715
Mechanical "Q" (Qms): 10.709
Total Speaker "Q" (Qts): 0.670
Driver Displacement: 0.048 cu. ft.
Equivalent Compliance (Vas): 2.530 cu. ft.
Xmax Linear Excursion: 0.45''
Reference Efficiency (no): 0.221%
Efficiency (1W/1m): 5.64 dB SPL
Effective Piston Area (Sd): 74.509 sq. in.
Net Weight: 8.11 lbs
