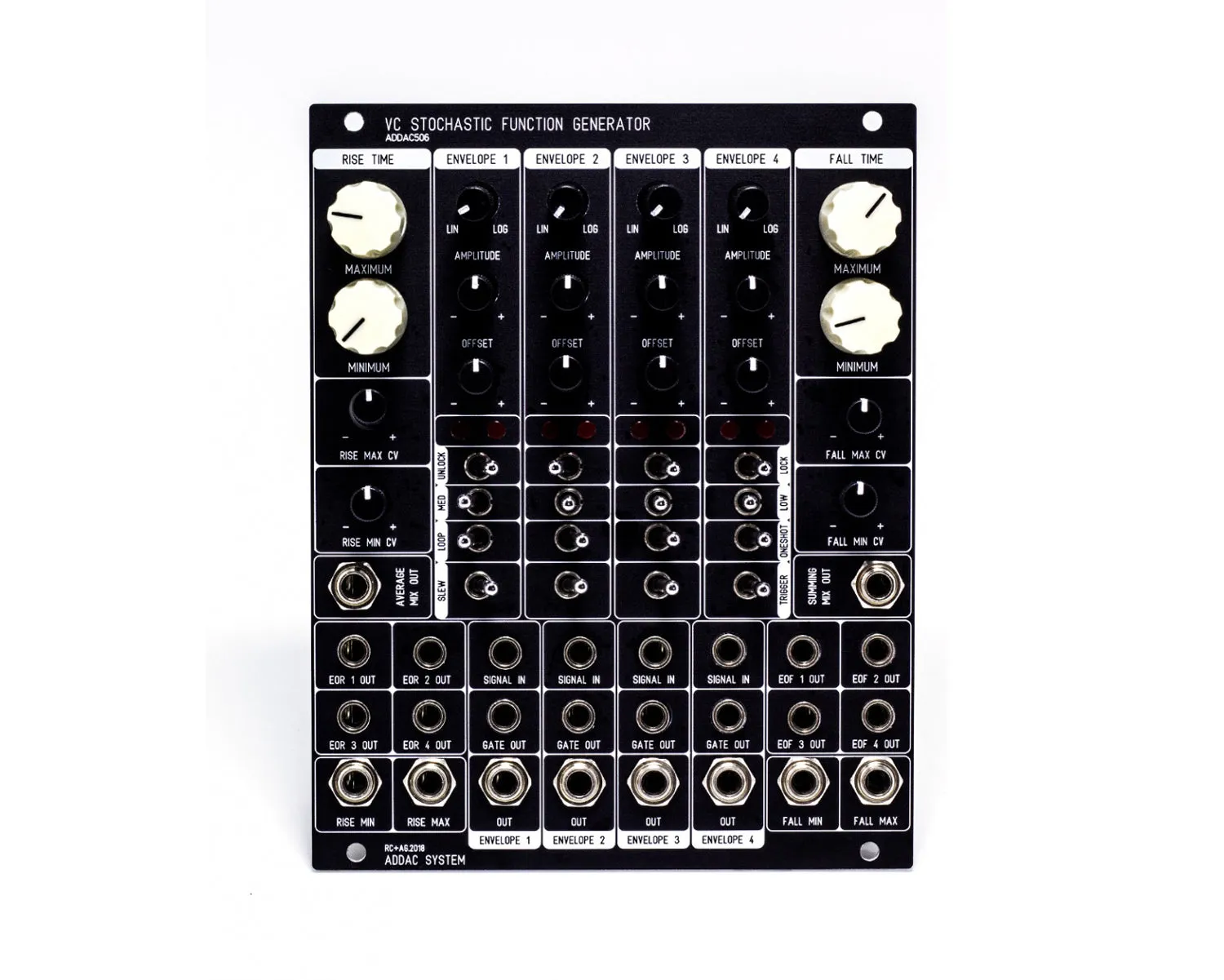

The ADDAC506 Stochastic Function Generator is a 20HP Stochastic Function Generator perfect for complex envelopes. It features four channels of envelope/slew generation and controls for global maximum rise/fall and minimum rise/fall.
Every trigger or start of envelope cycle, the module randomly selects a new rise and fall time based on these controls. If the minimum setting is above the maximum setting, no modulation will occur and the settings will act as a fixed control for the envelope time. The rise/fall min/max controls all have dedicated CV inputs with attenuverters.

• Four-channel complex envelope generator
• Switches for locking parameters, looping, slew/trigger, and range
• End of rise, end of fall, and rise only gate outputs
• Per-envelope triggering and control of curve, amplitude, and offset
• Attenuverters for all CV inputs
• Mix and average output

Video:

Product Specs

• Item Number: 20252
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Portugal
• MPN: ADDAC506
• Modular Grid: Eurorack
• Dimensions*: 20 HP
• Power*: 200 mA 12V 150 mA -12V 0 mA 5V

* User contributed details
