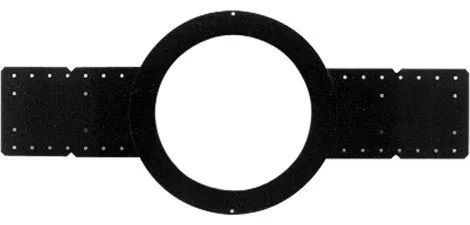

New Construction Ring FAP42T
Use model FAP42-TR for new construction drywall ceiling applications. This unit provides a marked location for drywall installers to cut around, essentially reserving the desired location in the ceiling until final installation of loudspeaker. Mounting holes are provided to accommodate 16" or 24" OC stud/joist mounting.

Tech Data

• Designed to install before drywall ceiling is installed
• Galvanized to prevent rust
• Matches both 16" and 24" centered ceiling joists and hat channels
• Saves time in identifying prewire location

Specifications

• Depth 24" (60.96 cm)
• Diameter 9" (22.86 cm)
• Shipping Weight 2.00 lbs (0.91 kgs)
