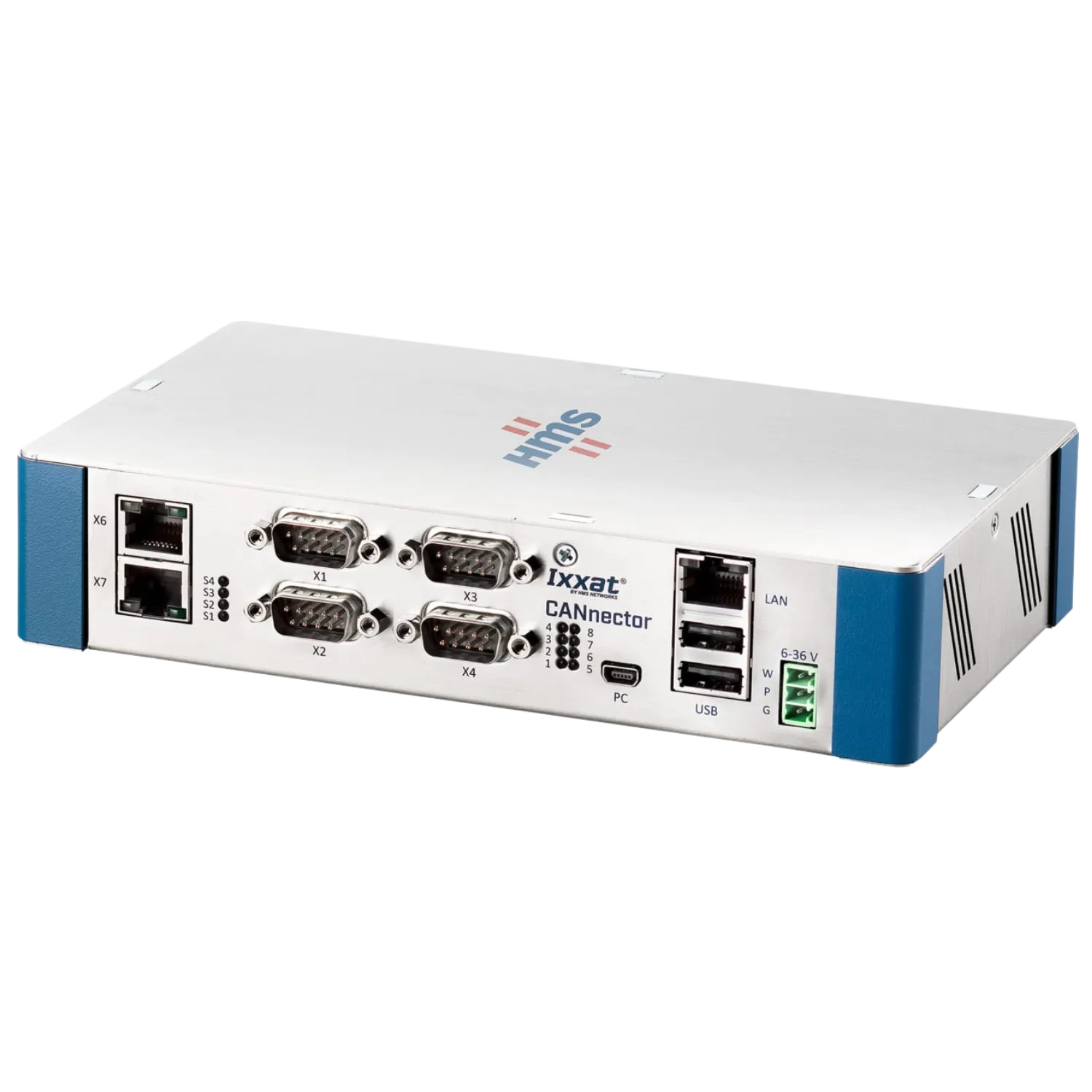

The CANnector S & SE are configurable automotive platforms with 6 CAN channels (2 are CAN FD capable), and with 2 LIN channels. These devices are powerful platforms for automotive engineering and testing applications by integrating multiple bus systems for efficient logging and gateway operations.

The Ixxat Advanced Configuration Tool (ACT) makes configuring the devices easy. This Windows-based tool allows for drag and drop configuration.

All applications run on the device. A PC is only needed for configuration or stimulation/visualization of data, as the actual intelligence is outsourced to the embedded platform.

Supports Industrial Ethernet and has EtherCAT option

By supporting Industrial Ethernet, and, if needed, EtherCAT, the CANnector S and SE facilitates high-speed data transfer and network integration for complex applications. These features are especially suited for e-mobility and varied industrial projects. Most use cases can be solved by using ACT Freeware.

Easy integration

The CANnector enables easy integration of multiple bus systems into a single, DIN rail mountable device. This is essential for e-mobility projects and complex industrial applications.

Multi-connectivity with various interfaces

In addition to the CAN and LIN channels, other interfaces include

• 1 x Ethernet (10/100 Base-T)
• 2 x Digital in/out (A/E)
• 1 x USB 2.0 device
• 2 x USB 2.0 host.
• 1 x EtherCAT with EtherCAT option

Improved data management for efficient engineering

By ensuring easy integration and reliable performance, the CANnector products streamlines data management and protocol handling making it optimized for automotive testing, logging and gateway operations.

Overvoltage protection

Galvanic isolation up to 2 kV safeguards against overvoltage and protects from potential electrical damage.
