Product Details
＋

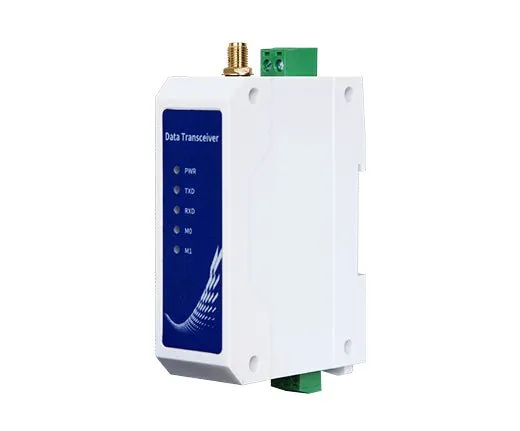

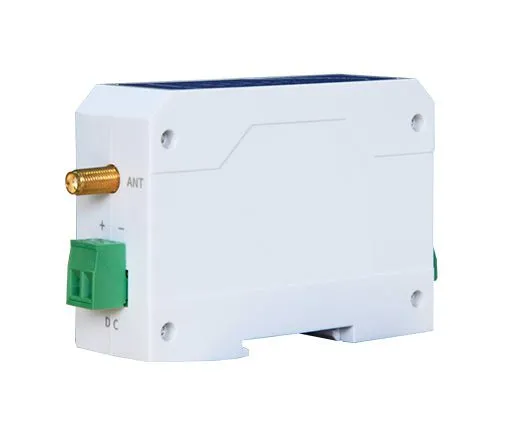

[Introduction]：E95-DTU(400SL30-485) is a wireless data transmission DTU that uses military-grade LoRa modulation technology. It has a variety of transmission methods. It works at (410/441M) frequency band (default 433MHz). The DTU provides a transparent RS485 interface, plastic shell. rail type installation structure, support 8~28V voltage
[Frequency]：410～441MHz
[Power]：20dBm
[Distance]：3km
[Size]：92*67*30mm
[Interface]：RS485
[Weight]：95±5g
| Mode |
Working Frequency |
Transmit Power |
Distance | Specifications | Recommended Application Scenarios |
| Hz | dbm | km | |||
| E95-DTU(400SL30-485) | 410/441M | 20 | 3 |
Lora spread spectrum anti-interfernce |
Suitable for small data volume and long-distance application environment |
| No. | Term | Specification | Description |
| 1 | Size | 92*67*30 mm | Review installation dimensions for details |
| 2 | Weight | 95g | Weight tolerance 5g |
| 3 | Working Temperature | -40℃～ 85℃ | Meet the needs of industrial use |
| 4 |
Antenna impedance |
50Ω |
Standard 50Ω characteristic impedance |
| 5 | Voltage Range | 8～28V DC | Recommend to use 12V or 24V |
| 6 | Interface | RS485 | 3.81 terminal block |
| 7 | Baud Rate | Default 9600 | Baud rate range 1200～115200 |
| 8 | Address Code | Default 0 | A total of 65536 address codes can be set |
| Model |
Defaul tFrequency |
Frequenc yRange |
Channel Spacing |
Number of Channels |
| Hz | Hz | Hz | ||
| E95-DTU(400SL30-485) | 433M | 410～441M |
1M | 32，Half Duplex |
| Model | Transmitting Current mA | Waiting Current mA | ||
| 12V | 24V | 12V | 24V | |
| E95-DTU(400SL30-485) | 230 | 135 | 20 | 12 |
