| Product Attribute | Attribute Value |
|---|---|
| Application | Control Systems |
| For Use With | groov EPIC® System |
| Frequency | 40 to 400 Hz |
| Input Type | Digital |
| Mounting Type | DIN Rail |
| Number of Channels | 12 |
| Series | |
| Special Features | Lifetime Warranty |
| Voltage, Operating | 85 to 140 VAC |
| Wire Size | 14 - 28 AWG |
Overview

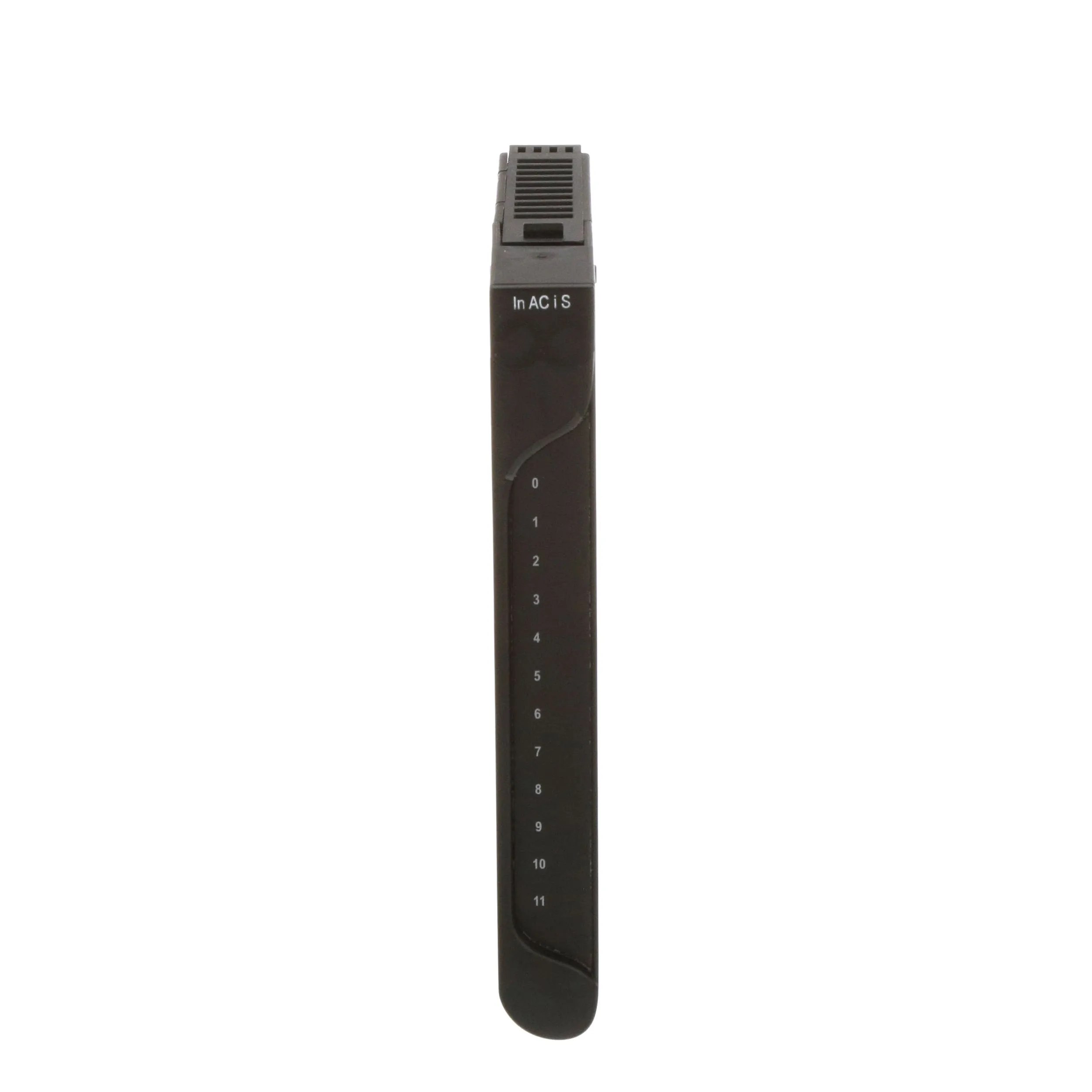

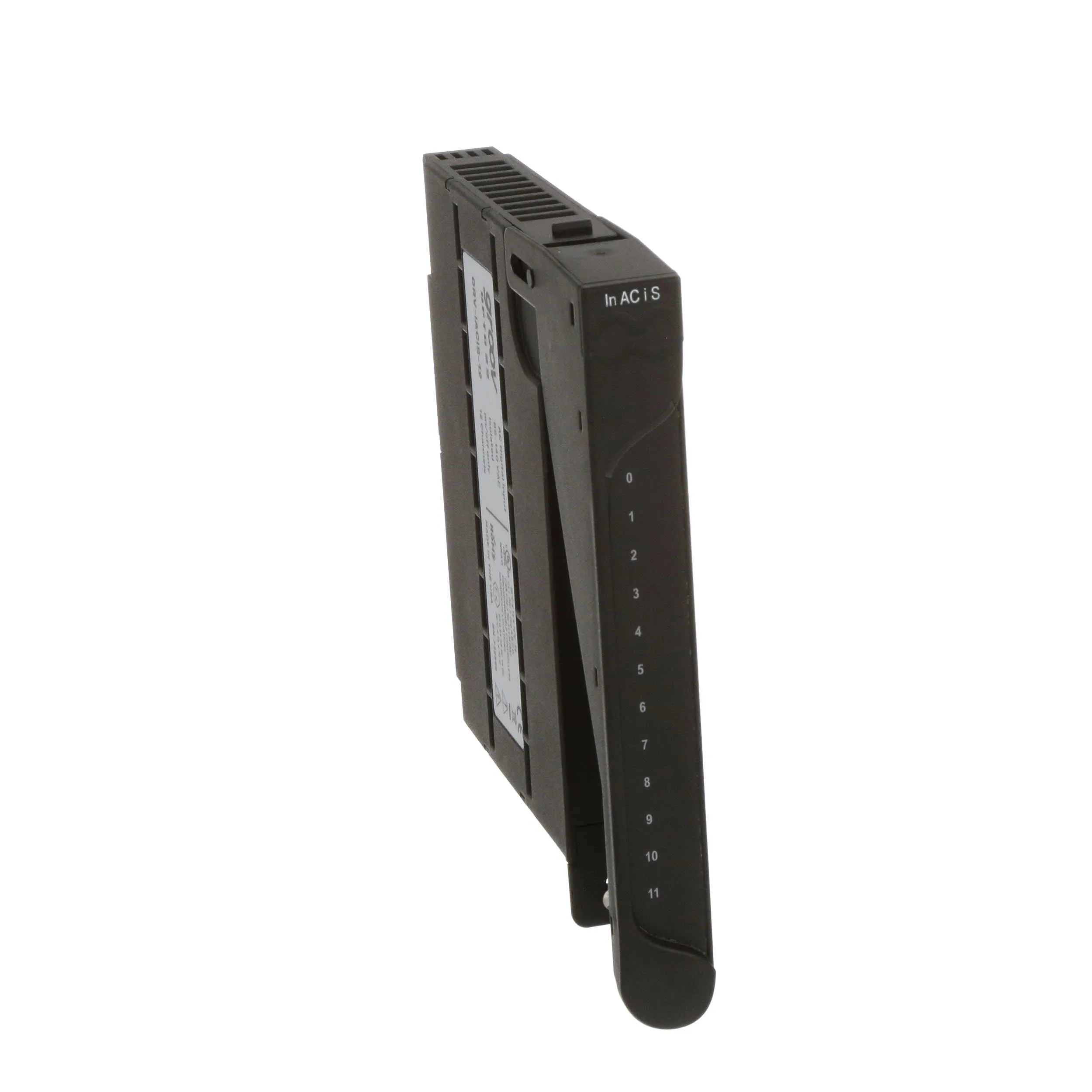

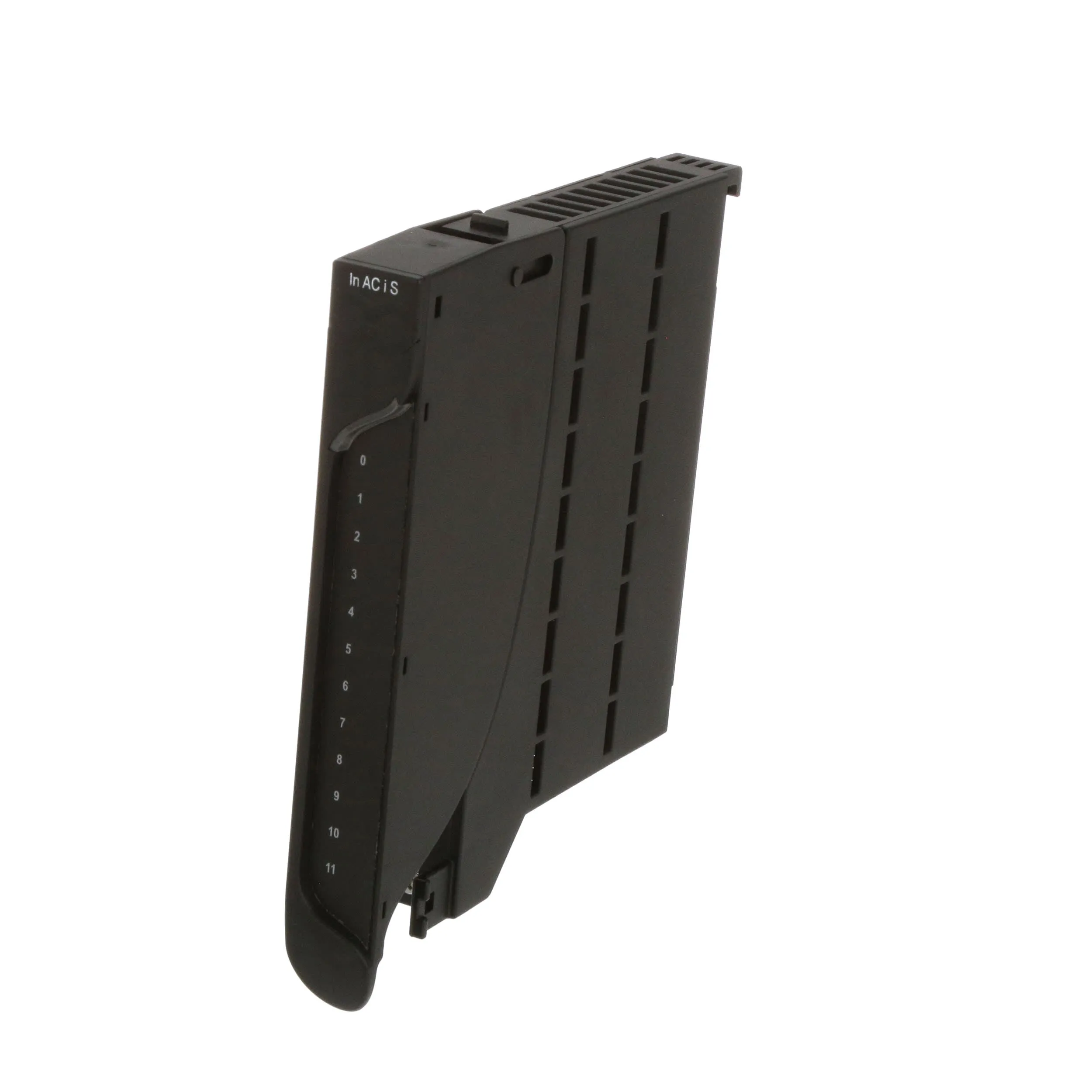

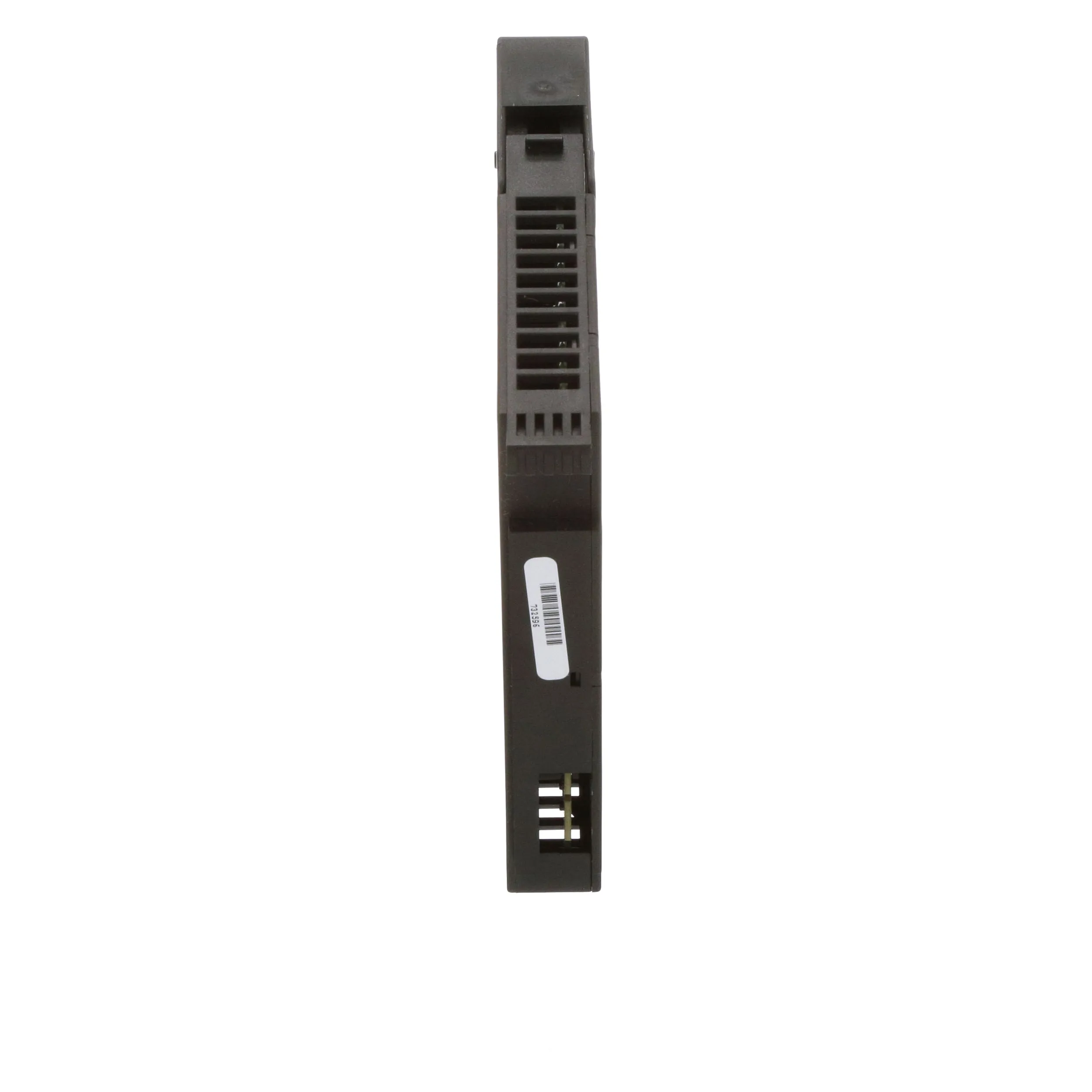

Opto22 groov EPIC Series — GRV-IACIS-12 | 12 Channels AC Discrete Input 85-140 VAC, Channel-to-Channel Isolation with On/Off State Only:
The GRV-IACIS-12 AC digital input module provides input status from devices such as pumps, fans, and motors that use a 85–140 VAC signal. The module has 12 channels with channel-to-channel isolation. Each channel provides on or off sensing only. Part of the groov EPIC® system, the GRV-IACIS-12 mounts on a groov EPIC chassis with a GRV-EPIC-PR1 processor and groov I/O modules (discrete, analog, and serial). groov 115 VAC input modules are used to sense status from devices such as limit switches, contacts, and other devices that use a 85–140 VAC signal.
***NOTE: For projects with more complex requirements, see the GRV-IACI-12 module, which provides additional features (latching, totalization, and more).
Choose the module you need based on your requirements:
Features:
