PCAN-Developer 4 is a high-performance Application Programming Interface (API) capable of creating complex Windows® applications that support CAN and CAN FD using PEAK-System hardware interfaces.

The API can be used with different programming languages. The scope of supply includes examples and header files for C/C , Delphi, and .NET (C#, Visual Basic, and C CLR).

The PCAN-Developer package provides an extensive function library using interface DLLs for 32-bit and 64-bit systems. Unlike the free PCAN-Basic API, the CAN communication is handled by Client objects, which allows multiple applications to access a single physical CAN channel. Furthermore, it can even work without CAN hardware via virtual connections; Clients establish a simulated CAN connection between Windows® applications.

Features of CAN connections via Clients

• One or multiple Clients can be connected with a Net
• One Client can be connected with multiple Nets
• A Net can be connected to one virtual connection or one active hardware channel
• When a Client transmits, the message is passed to all other Clients connected to the Net and via the hardware to the external CAN bus

Package Includes:

• Single user license for development
• Distribution license for PCAN-Developer redistributable
• API DLLs

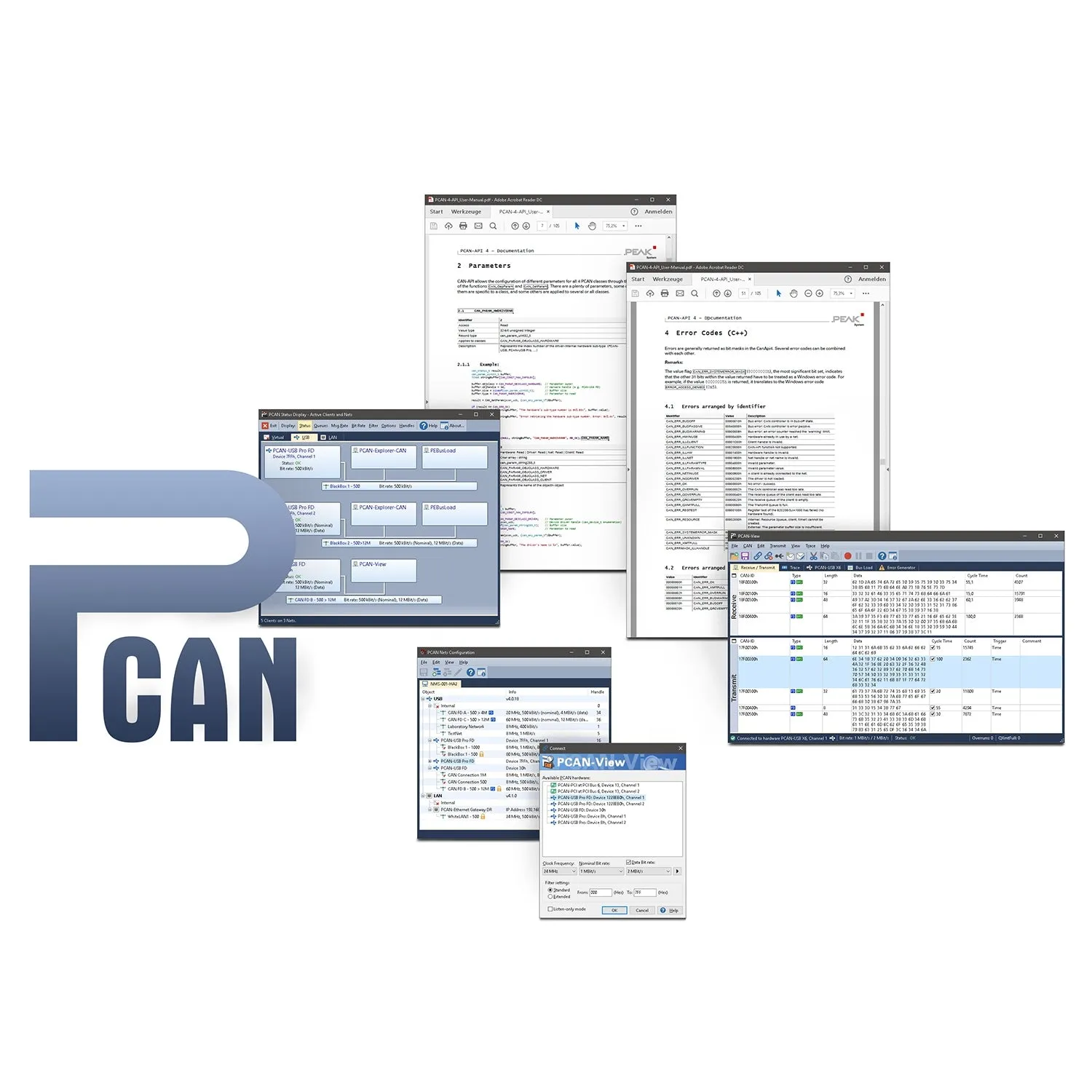

• PCAN-View
• PCAN-Nets Configuration
• PCAN-Status Display

For the API and the software, you will receive all updates and free support for the duration of two years.
