The ProDirector 7 – A top class industrial laser light projector

•     The ProDirector 7 is proven a thousand times over
•     A laserprojector positioning aid with inimitable precision
•     Simple and ingenious in daily use
•     In use worldwide in almost all countries and industry segments
•     Dust-tight and robust, perfect for almost any environment

With the ProDirector 7, companies in many segments of industry gain decisive advantages when it comes to working quickly and with the highest precision. The ProDirector 7 projects its green laser beams from a fixed reference point, which can be under the ceiling or on a special construction. In doing so, it achieves a projection field for the laser of up to 80° degrees horizontally and 70° vertically for every direction in the room. Even a subsequent upgrade in your production is thus no problem.

ProDirector 7: Functioning as a 3D laser light projector for trade and industry

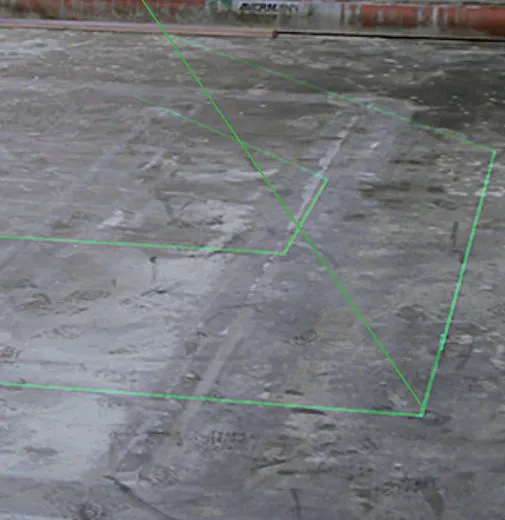

A computer-controlled laserprojector system with the sophisticated LaserPilot software ensures that the ProDirector7 laser throws measuring points, lines and entire work plans onto the surfaces to be processed. Permanently installed or integrated into a rail system, the size or complexity of the free-forms, welding tables, workpieces, materials or different layers in the composite area no longer play a role. The dust-tight design of the ProDirector7 proves to be just as reliably robust when working with wood as it is when working with precast concrete parts.
Each work step is predefined, and the execution by the employees can take place without tedious marking out, measuring, matching and rechecking. This not only reduces the working time, but also significantly minimises the error margins. Perfect for CNC applications of all kinds. For extremely large components, such as in the aerospace industry, the ProDirector 7 can also be installed as a compound system so that the entire area can be covered.

Performance description of the hardware

• Precision high-speed scanner with push-pull output stages
• Electronics in modern SMD technology.
• Integrated embedded PC with 800 MHz ,4 GB memory.
• Optimised receiver sensor of the reflection radiation
• Data input RS232, RS485
• Control lamps for mains voltage and information signal
• Mains filter in the power supply
• Switching power supply with an input voltage of 100-240 VAC
• Industrial aluminium housing to IP54 with optimised surface for heat dissipation
• Ambient temperature 5-45 degrees, power consumption approx. 70 VA
• CE conformity marking, manual

System specifications

• Position Accuracy
±0.014“ (0.35 mm) at a distance of 15‘ over 17‘ x 17‘ (4.5 m x 4.5 m) area (equals to a 60° projection)
• Field of View
Horizontal: max. 80°, Vertical: max. 70°
• Laser
Green: 520-525 nm, FC-lasermodule
• Laser Class 5 mW
International: Class 2M per IEC/EN 60825-1:2015-07, CE certification
USA: Class IIIa per 21CFR 1040 (CDRH)
• Power Requirement
80-240 VAC 50/60 Hz
• Dimensions
Length: 355 mm/18.90 “, Width: 120 mm/6.69 “, Height: 190 mm/11.42 “, Weight: 5,8 kg

Including:

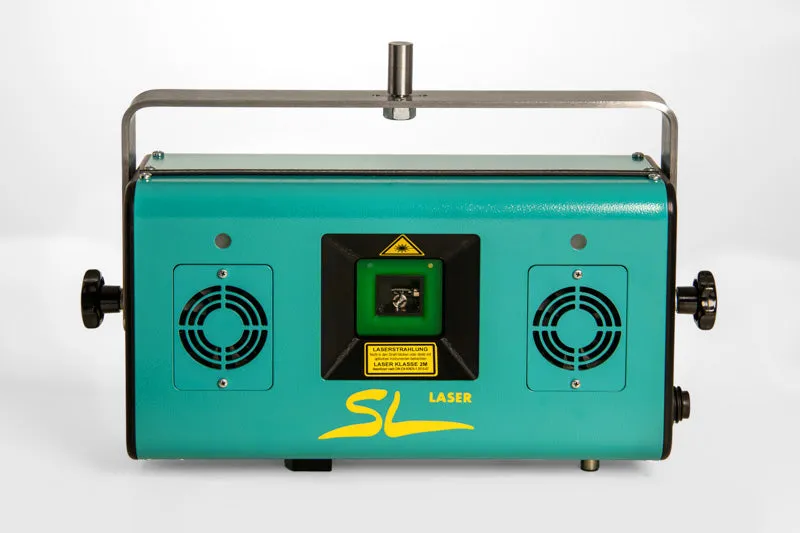

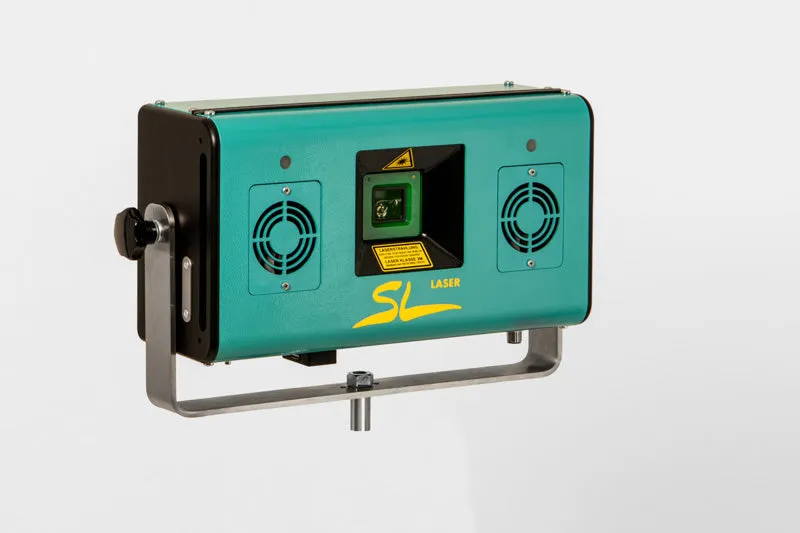

• 1 x ProDirector7 Laser projector 15mW Mid-Range
• 1 x 25m power cable 40002
• 1 x 25m communications cable RJ45 40019
• 1 x RS232/485 converter (connect up to 2 lasers) 90009
• 4 x drift reflection prisms - please supply concrete prisms
• 1 x teaching tool 30009
• 1 x Mounting system (5-way cardanic flange) 11038
