Product Details
＋

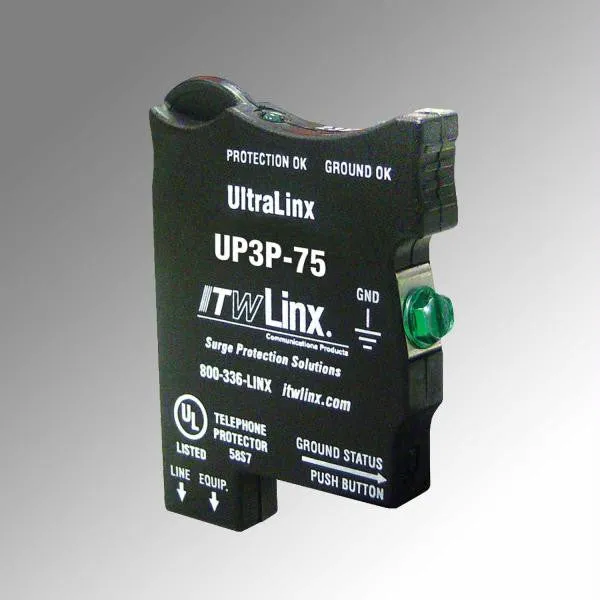

- Ultralinx 66 Block 75v Clamp 160ma Ptc
- 66 Block Ul Secondary 75v Surge Protector
- Ul Secondary Listed With 160ma Ptc For Voice/fax/modem Lines (75v)
- Dual Indicator Lights: Protection Ok And Ground Connection Ok
- Solidstate Protection
- Single Pair Protection: Protect Only The Lines Requiring Protection
- Ideal For Retrofit Applications: Just Remove The Bridging Clips From The Block And Replace Them With The Protector Add The Ground Connection And The Pair Is Connected
- Grounding Requirements: Fieldinstalled Solid Copper Wire
- Recommended Grounding Impedance: <0.5 Ohm
- Fuse Rating: 160ma (810 Ohms)
- Signal Perfect Circuitry
- Clamping Level: 75v
- Response Time: 15 Nanoseconds
- Capacitance: <50pf
- Suppression Modes: Metallic And Longitudinal
- Wires Protected: 2wires 1 Pair
- Termination Type: 66 M Blocks
- Brand: Itw Linx
